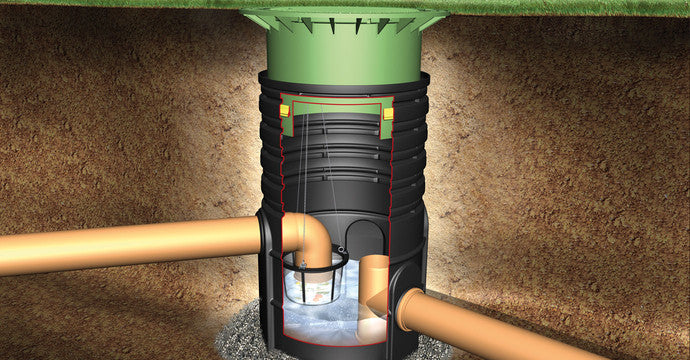

Sedimentation filter shaft, suitable for pedestrian loading

Loading type

£1,089.00

Maximum quantity available reached.

Description
Documentation
Delivery
Reviews

For the majority of SuDS and rainwater applications pre filtration is required to remove silt and organic matter from the system to prevent blockage and poor performance.

3-stage cleaning process
- Fine filter basket (0.35 mm mesh width)
- Sedimentation zone
- Submerged pipe as oil separator
Low installation depth from 1,000 – 1,500 mm using telescopic dome shaft
Suitable for pedestrian loading with plastic cover
Cover has child-proof lock
Sealed up to the earth surface
Maximum 1000 m² to the sealed surface to be connected
DN 150 connections
Sedimentation shaft to retain dirt before the infiltration system
Ideal for large plants
With extraction device for easy extraction of the sieve insert

Sedimentation filter shaft, suitable for pedestrian loading

order no.	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
340026	850	850	1000 - 1500	35
