Oriflo Protected Flow Control 600mm Ø Chamber C Series

£889.00
Maximum quantity available reached.

**Flow rate and head must be provided via email upon purchase**

The Oriflo range is a series of Orifice Flow Control Chambers accommodating a range of flow rates

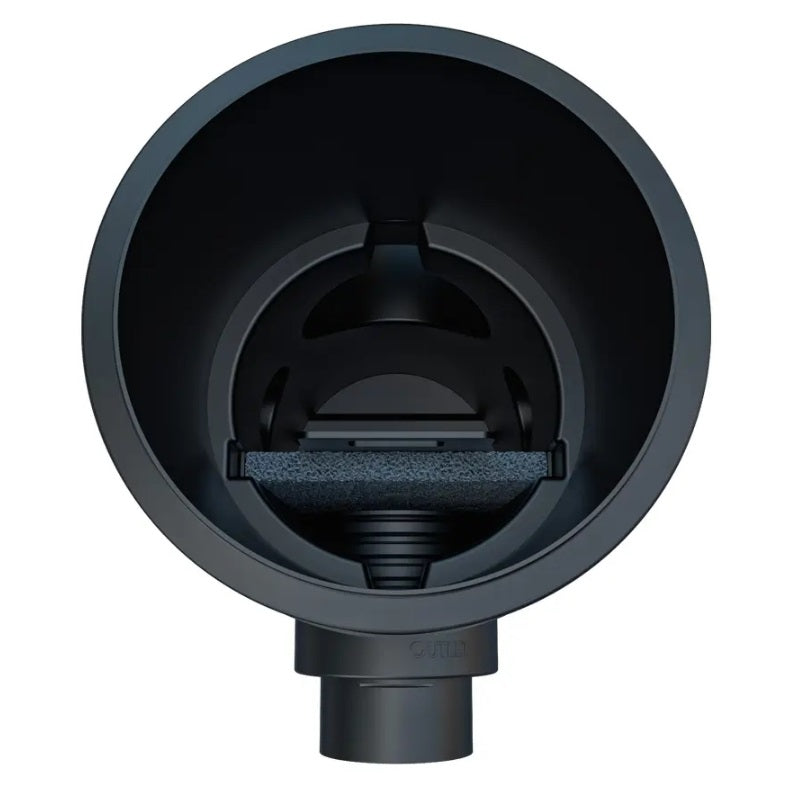

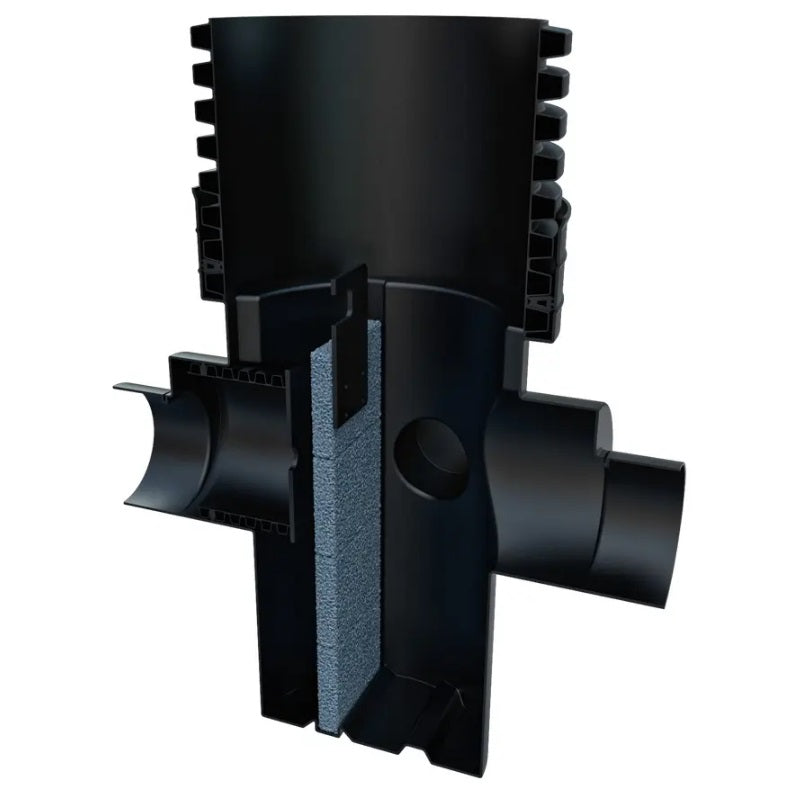

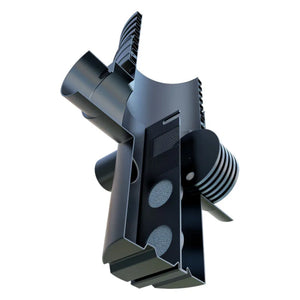

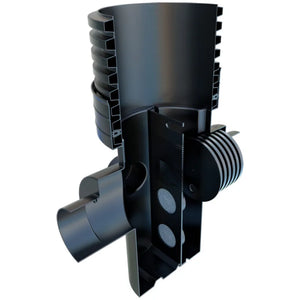

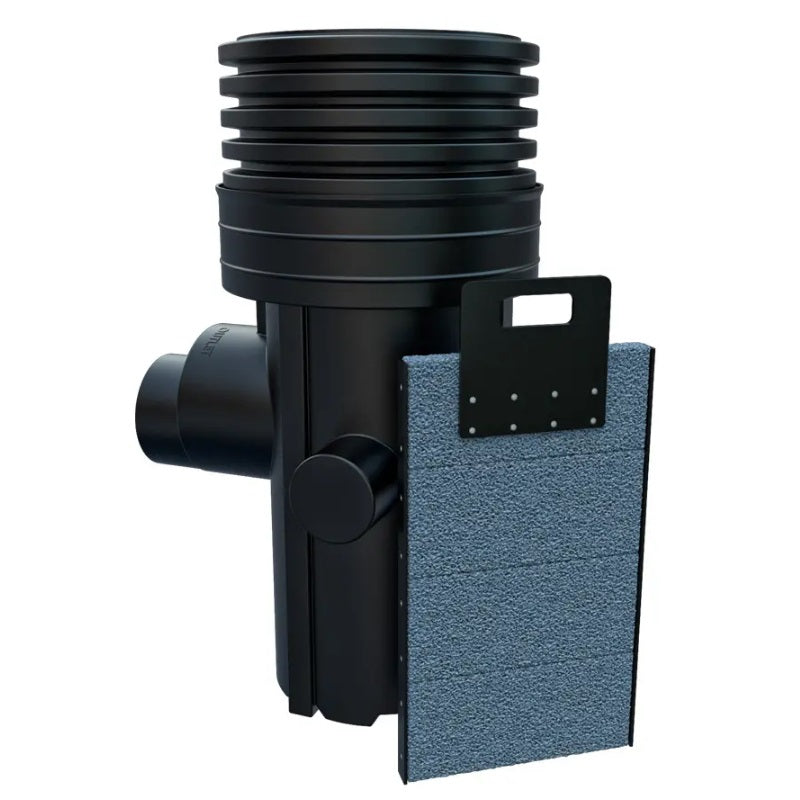

Within the Oriflo range we have our protected orifice chambers that features a 100% recycled thermoplastic block (blok). This blok is installed into our rotational moulded chambers forcing all flow through the blok before reaching the outlet, filtering out Total Suspended Solids including silt up to 30μm (0.03mm)

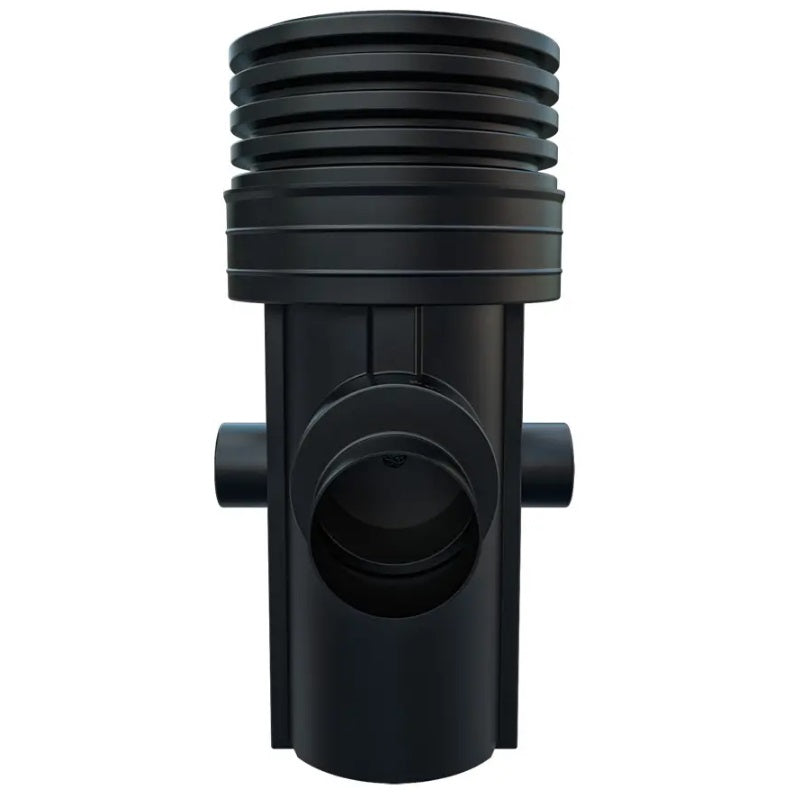

600mm diameter, pre-assembled catchpit chamber, delivered ready to install

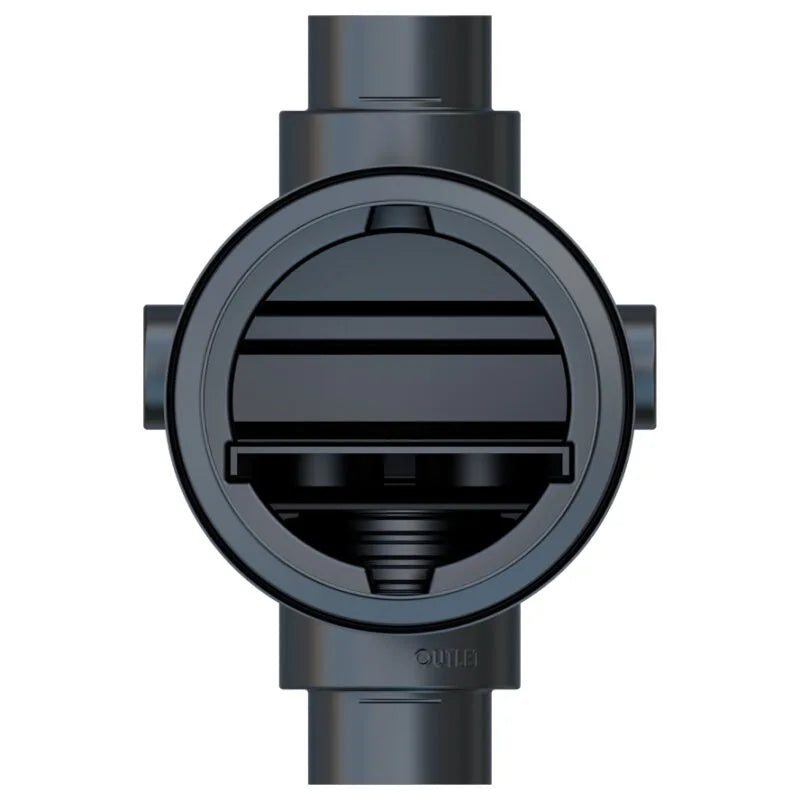

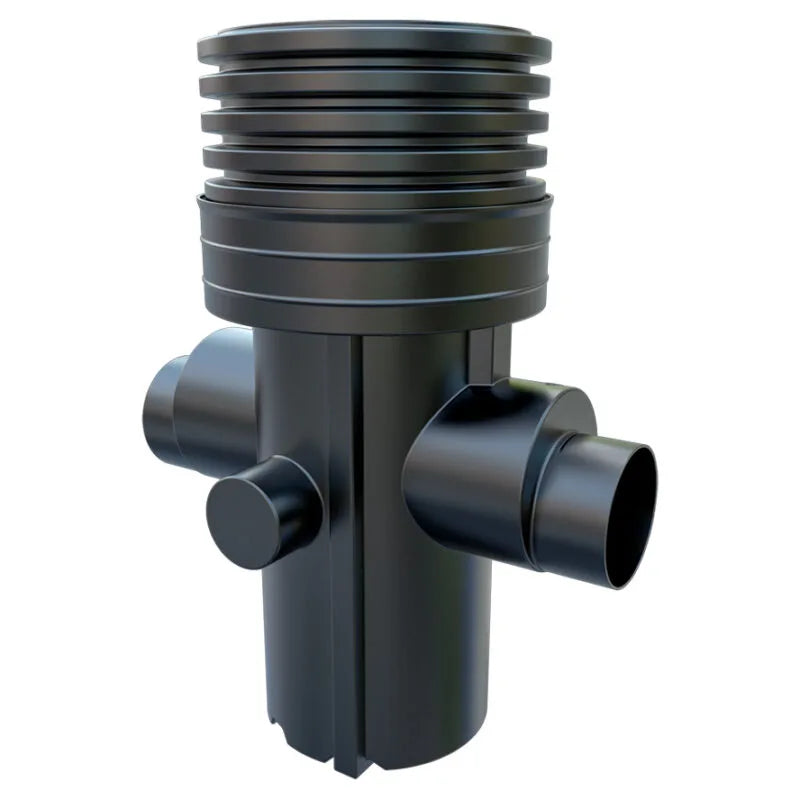

This model uses 225mm or 300mm main channel socket connections including two further 150mm side inlets at 90°, 270° off centre from the outlet at 0°. Side inlets are supplied as blanked ends that can be used as required

Application

  • Above ground access for inspection and maintenance of surface water pipe systems.
  • Suitable for Adoptable and Non-Adoptable applications.
  • Maximum installation depth to soffit of pipe - Adoptable 3000mm and Non-adoptable 3000mm.
  • Designed for large housing or commercial developments.

Compliance

  • Design & Construction Guidance (DCG) - Type D & E Chambers
  • Buildings Regulations part H
  • BS EN 13598−1 & 2
  • BS EN 681−1

Features

  • Single piece, pre-assembled chambers.
  • Durable rotational moulded LLDPE base - chemical and impact resistant.
  • 515mm sump depth.
  • Compatible with all UK Twinwall pipe systems.
  • Profiled base which improves overall strength.
  • Four standard depths available.
  • Access shafts are easily cut onsite to the required depth.
  • Chambers can be installed in granular backfill.

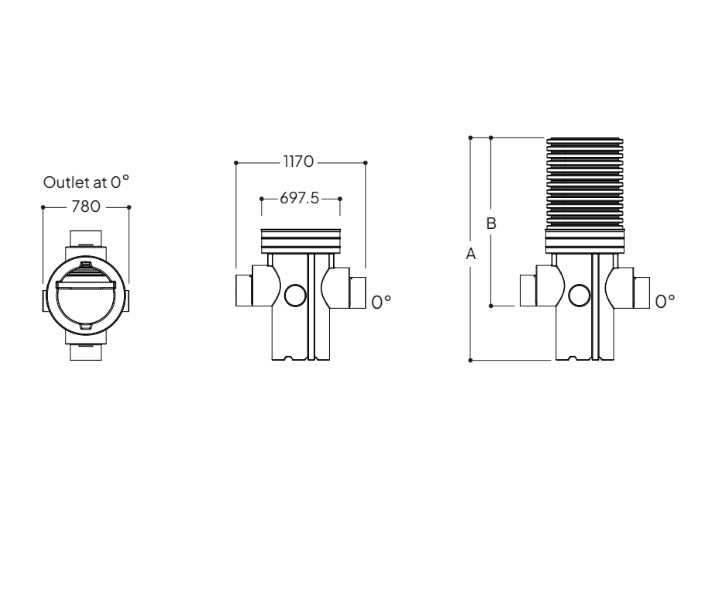

Specification

Product Code Main Pipework
Connections Ø
(mm) 		Optional Side
Inlets Ø
(mm) 		Overall Depth
A
(mm) 		Inlet Invert
B
(mm) 		Approx.
Weight
(kg)
OFCC600B/1.5 225, 300 150 1490 980 37
OFCC600B/2 225, 300 150 2010 1500 47
OFCC600B/2.4 225, 300 150 2400 1890 54
OFCC600B/3 225, 300 150 2985 2475 65

Chambers over 1000mm soffit depth require our reduction/restriction caps to meet DCG.

  • Inlet Invert measurements accurate to main channel socket. This measurement will vary depending on pipework used.
  • We provide a range of adaptors to connect to various pipework dimensions and pipework types including Marley Quantum, Polysewer and UltraRib.
