Oriflo Flow Control 1050mm ø Chamber P Series

£1,919.00
Maximum quantity available reached.

**Flow rate and head must be provided via email upon purchase**

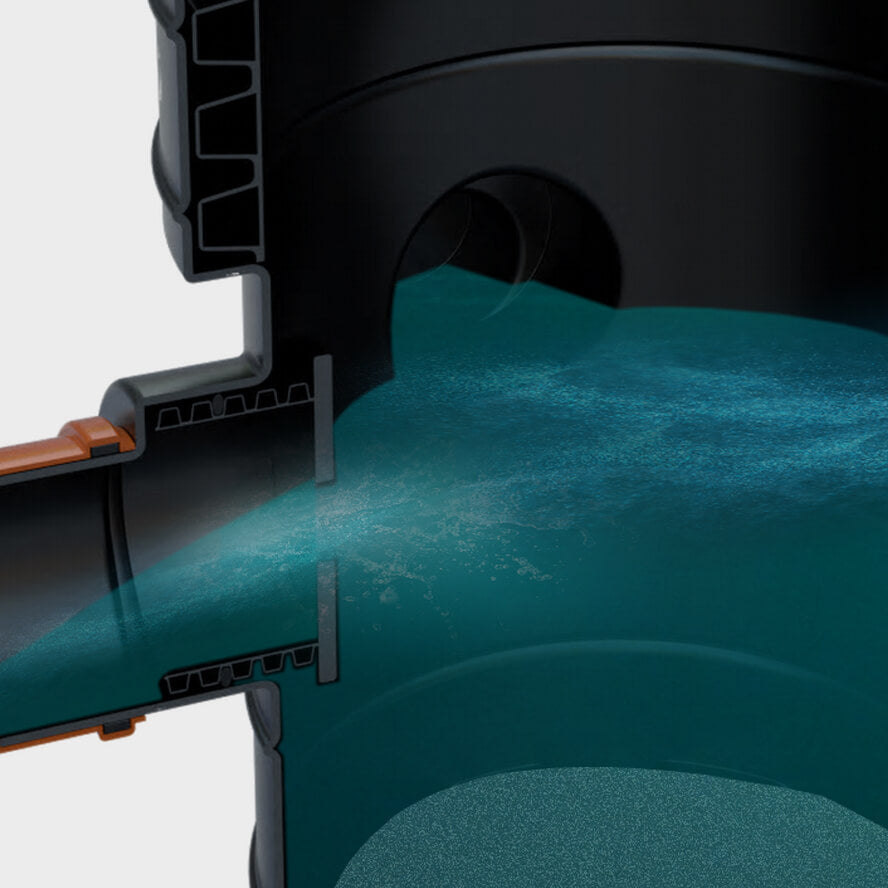

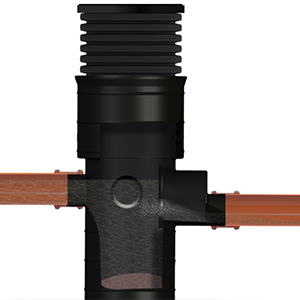

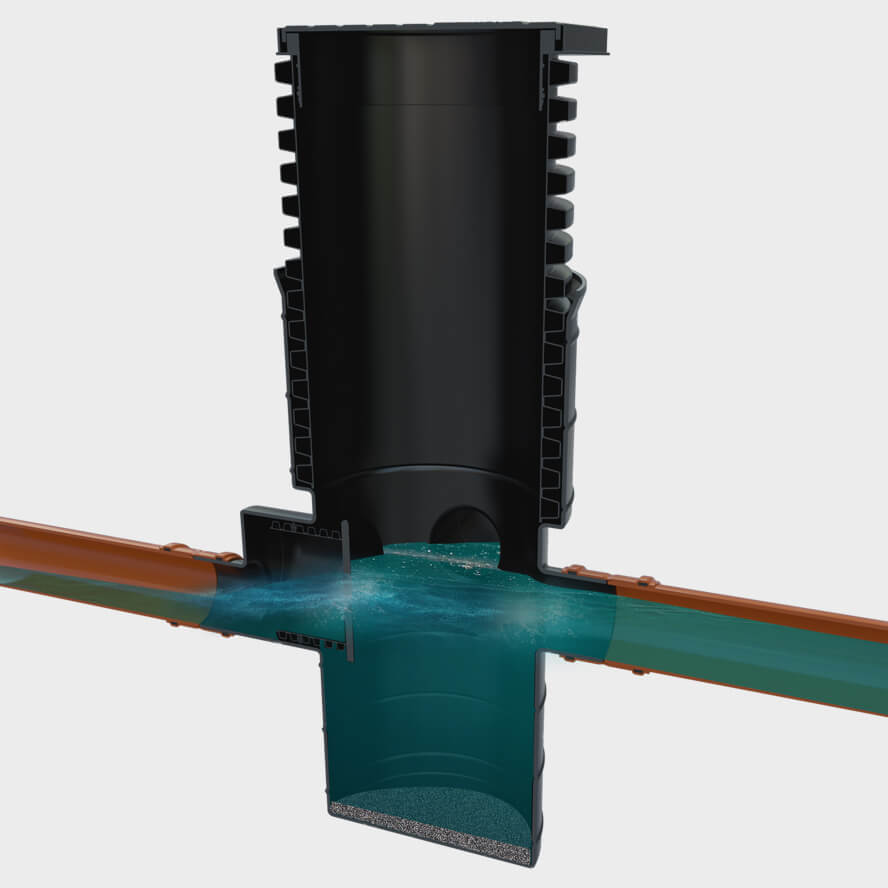

The Oriflo OFCP1050 is classed as an unprotected orifice plate – flow control chamber. Designed to support SuDS management and the sewer infrastructure, as part of a designed attenuation system, helping prevent flooding by controlling the flow into the main sewer.

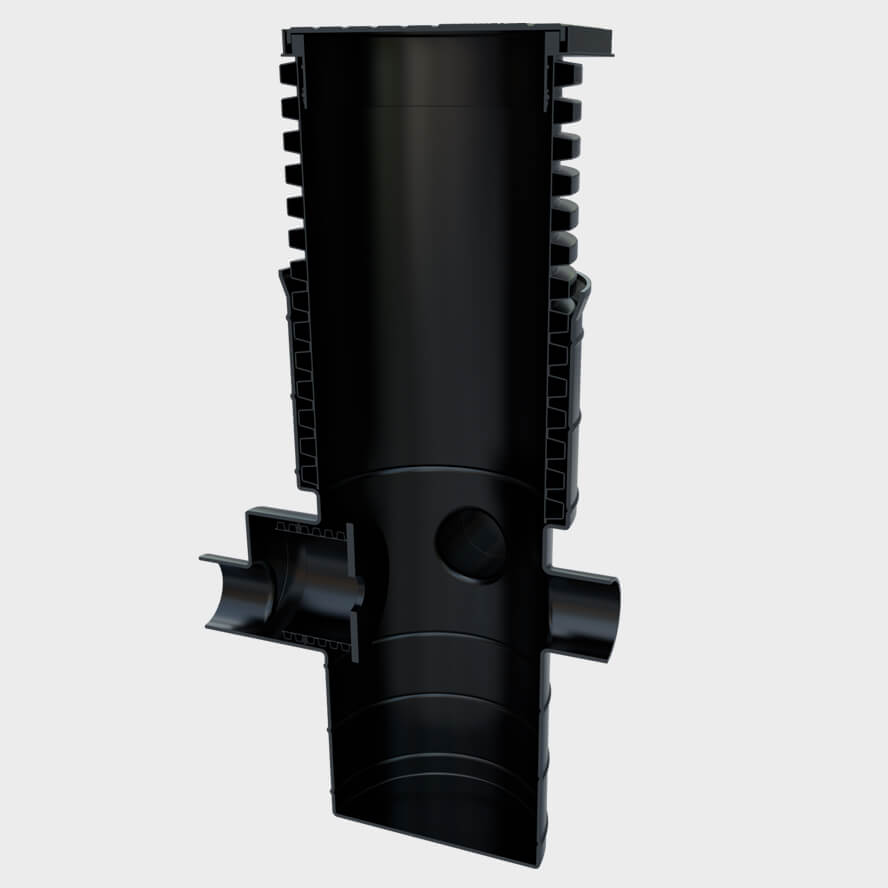

1200mm diameter, single piece – factory built units, delivered to site ready to install. All OFCP1050 units feature a robust, heavily profiled- rota moulded base and an impact resistant, twinwall body, with a choice of main channel pipework diameters from 110mm EN 1401 to 450mm twinwall, with extra inlets available on request and a choice of positions from 90° to 270°.

The number of extra inlets will be dependant on size of pipe and orientation. Chambers can be supplied with fitted ladder for full access, if required.

This does not come with a lid

Dimensions

    Product Code Chamber Internal
    Ø (mm)     		Main Pipework
    Options Ø (mm)     		Side Inlet
    Option Ø (mm)     		Overall Depth
    A (mm)     		Invert Inlet
    B (mm)
    OFCP1050B 1038 110-450 110-450 1455 950
    OFCP1050/1.5 1038 110-450 110-450 1510 1005
    OFCP1050/2 1038 110-450 110-450 1930 1425
    OFCP1050/2.5 1038 110-450 110-450 2350 1845
    OFCP1050/3 1038 110-450 110-450 2960 2455
