EcoGrid E30

£17.23

Maximum quantity available reached.

Description
Documentation
Delivery
Reviews

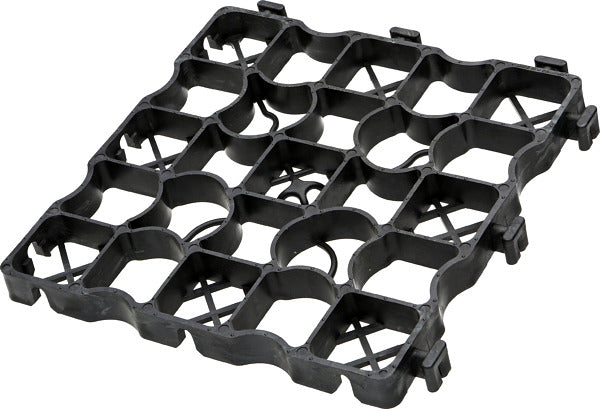

EcoGrid E30 - Ground Reinforcement System

Ecogrid E30 is an interlocking ground stabilising pedestrian grid with excellent loading capacity, made from 100% recycled polyethylene.

Suitable for:

Gardening and landscaping
Footpaths and cycle lanes
Escape routes
Entrances and exits

Price given per square metre (m2). Pallet shipping available as standard.

Technical Specification

Dimensions 330 x 330 x 30mm

Wall thickness 5.7mm

Carrying load Upto 250t per sq m (filled)

Weight per sq m 5,04 kg

Weight per unit 0,56 kg

Wall height 30mm

Material 100 % recycled PE (polyethylene )

Pressure resistance Up to 20 t axle load in acc. with DIN 1072

Dimensional stability Temperature range -50° to +90°

Deformation 0.5 % (at normal temperatures +20 to +80 ° )

Moisture absorption 0.01%

Solubility Resistant to acids, alkalis, alcohols, oil and

petrol (de-icing salt, ammonia, acid rain, etc.)

Packaging

Packaging unit	1 layer (= 12 pieces = 1,33 sq m )
Layer per pallet	71
Sq m per Pallet	94.43 sq m
Pieces per pallet	852
Dimensions	105 x 135 x 229cm
Weight per pallet	484 kg (incl. Pallet )
