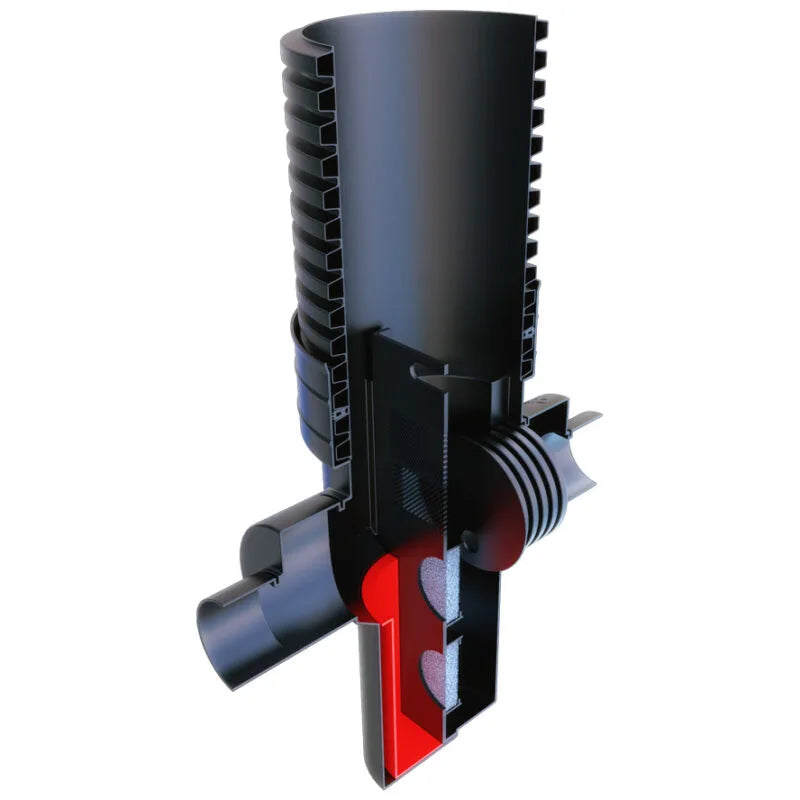

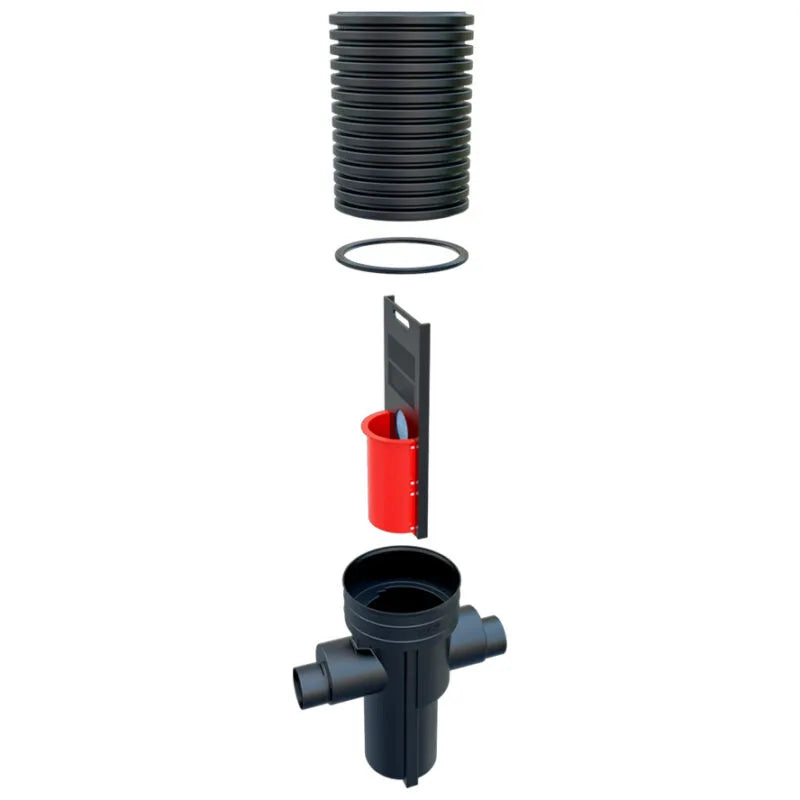

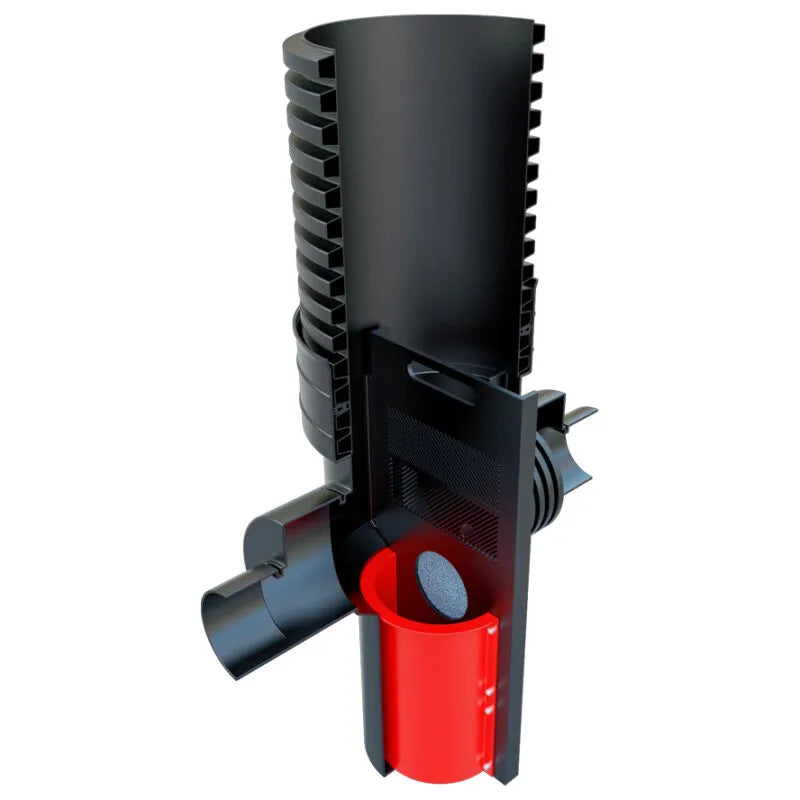

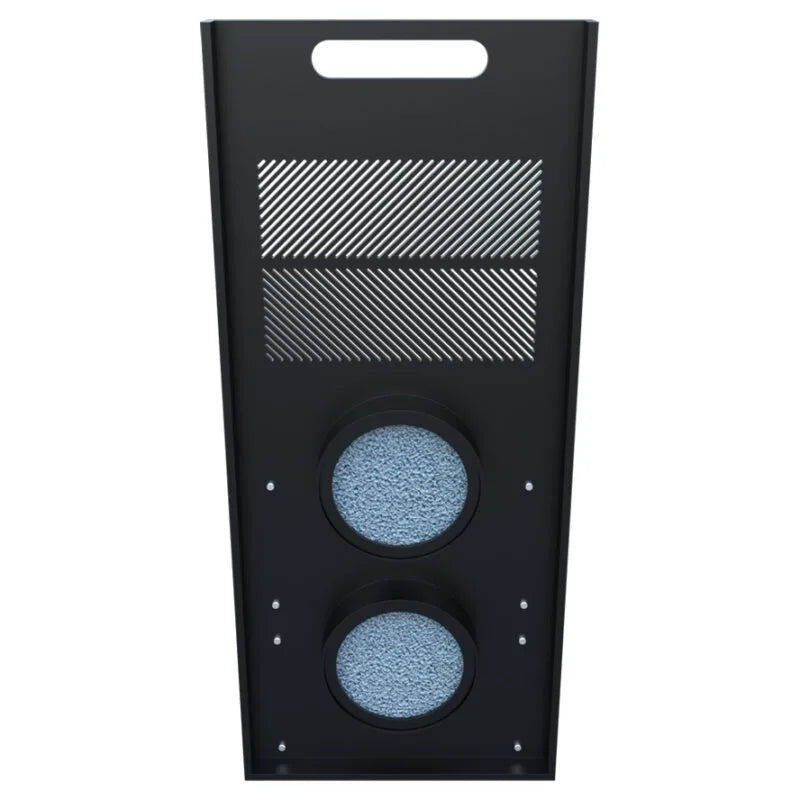

{"id":15140869439872,"title":"Oriflo Protected Flow Control 500mm Ø Chamber C Series","handle":"oriflo-protected-flow-control-500mm-o-chamber-c-series","description":"\u003cp\u003e\u003cstrong\u003e**Flow rate and head must be provided via email upon purchase**\u003c\/strong\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eThe OFCC500 Oriflo model is designed to handle flow rates up to 70 L\/sec, which can be increased when introduced to systems with larger depth head drops.\u003c\/p\u003e\n\u003cp\u003eIt features a Ø 450mm rotational moulded chamber base, which accommodates 150mm or 225mm twinwall main channel connections accordingly.\u003c\/p\u003e\n\u003cp\u003eThis model features a 100% recycled thermoplastic block (Blok), providing protection to the orifice.  Subsequently, this Blok is installed into our rotational moulded chambers forcing all flow through the Blok before reaching the outlet, filtering out Total Suspended Solids including silt up to 30μm (0.03mm).\u003c\/p\u003e\n\u003cp\u003eAlso contains a basket attached the the Blok, with a capacity of 17.5kg, which is designed for up to 1200m² of surface water runoff.\u003c\/p\u003e\n\u003cp\u003eAlternatively, we offer a larger model with a Ø 600mm chamber, available\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.freeflush.co.uk\/products\/oriflo-flow-control-chamber-c-series?_pos=1\u0026amp;_sid=92e7cd02b\u0026amp;_ss=r\"\u003ehere\u003c\/a\u003e\u003ca href=\"https:\/\/turtleenviro.co.uk\/product\/oriflo-ofcc600\/\"\u003e.\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eBLOK Filter Technology Within The Oriflo Range\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003eThis model is within our protected Oriflo range. This range includes a filter to prevent total suspended solids (TSS) including silt migrating past the filter, protecting the orifice plate and stopping potential blockage. This range allows smaller orifice sizes due to the enhanced protection of the orifice plate.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eApplication\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eAbove ground access for inspection and maintenance of surface water pipe systems.\u003c\/li\u003e\n\u003cli\u003eSuitable for Adoptable and Non-Adoptable applications.\u003c\/li\u003e\n\u003cli\u003eMaximum installation depth of soffit pipe - Adoptable 3000mm and Non-Adoptable 3000mm.\u003c\/li\u003e\n\u003cli\u003eDesigned for medium to large housing or commercial developments.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eBuilt to the following standards\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eDesign \u0026amp; Construction Guidance (DCG) - Section C7.12\u003c\/li\u003e\n\u003cli\u003eCIRIA75310.2 - 20.5 Compliance\u003c\/li\u003e\n\u003cli\u003eBS 8582 - 9.6\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eFeatures\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eSingle piece, pre-assembled chambers.\u003c\/li\u003e\n\u003cli\u003eDurable rotational moulded LLDPE base - chemical and impact resistant.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003e480mm sump depth.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eCompatible with all UK Twinwall pipe systems.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eProfiled base which improves overall strength.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eThree standard depths available.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eAccess shafts are easily cut onsite to the required depth.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eChambers can be installed in granular backfill.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eSpecification\u003c\/strong\u003e\u003c\/p\u003e\n\u003cstyle type=\"text\/css\"\u003e\u003c!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}--\u003e\u003c\/style\u003e\n\u003ctable xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\" cellspacing=\"0\" cellpadding=\"0\" dir=\"ltr\" border=\"1\" data-sheets-root=\"1\" data-sheets-baot=\"1\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"114\"\u003e \u003ccol width=\"114\"\u003e \u003ccol width=\"114\"\u003e \u003ccol width=\"114\"\u003e \u003ccol width=\"127\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"text-align: center;\"\u003e\u003cstrong\u003eModel\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e\n\u003cstrong\u003eMain Pipework \u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003eConnections \u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003eØ (mm)\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e\u003cstrong\u003eOverall Depth A\u003cbr\u003e(mm)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e\u003cstrong\u003eInvert Depth B\u003cbr\u003e(mm)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e\n\u003cstrong\u003eApprocimate Weight\u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003e(kg)\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"text-align: center;\"\u003eOFCC500\/1.5\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e150 , 225\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e1480\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e965\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e35\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"text-align: center;\"\u003eOFCC500\/2\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e150 , 225\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e1990\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e1475\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e40\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"text-align: center;\"\u003eOFCC500\/2.4\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e150 , 225\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e2400\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e1885\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e45\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cul\u003e\n\u003cli\u003eChambers over 1000mm soffit depth require our reduction\/restriction caps to meet DCG.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eInlet Invert measurements accurate to main channel socket. This measurement will vary depending on pipework used.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003c!-- split --\u003e\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0829\/4323\/files\/OFCC500_DATA_SHEET.pdf?v=1744799026\"\u003eOFCC500 Data Sheet\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0829\/4323\/files\/OFCC500_PRODUCT_DRAWING.pdf?v=1744799027\"\u003eOFCC500 Drawing\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e","published_at":"2025-04-16T11:53:02+01:00","created_at":"2025-04-16T11:12:18+01:00","vendor":"TurtleEnviro","type":"","tags":[],"price":89900,"price_min":89900,"price_max":106900,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":55879302971776,"title":"965\/1480","option1":"965\/1480","option2":null,"option3":null,"sku":"OFCC500\/1.5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Oriflo Protected Flow Control 500mm Ø Chamber C Series - 965\/1480","public_title":"965\/1480","options":["965\/1480"],"price":89900,"weight":46000,"compare_at_price":null,"inventory_quantity":-3,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55879303004544,"title":"1475\/1990","option1":"1475\/1990","option2":null,"option3":null,"sku":"OFCC500\/2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Oriflo Protected Flow Control 500mm Ø Chamber C Series - 1475\/1990","public_title":"1475\/1990","options":["1475\/1990"],"price":92900,"weight":46000,"compare_at_price":null,"inventory_quantity":-2,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":55879303037312,"title":"1885\/2400","option1":"1885\/2400","option2":null,"option3":null,"sku":"OFCC500\/2.4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Oriflo Protected Flow Control 500mm Ø Chamber C Series - 1885\/2400","public_title":"1885\/2400","options":["1885\/2400"],"price":106900,"weight":46000,"compare_at_price":null,"inventory_quantity":-1,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500-3.jpg?v=1744799315","\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500.jpg?v=1744799315","\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500-2.jpg?v=1744799315","\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500-4.jpg?v=1744799209"],"featured_image":"\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500-3.jpg?v=1744799315","options":["Inlet\/Total Depth (mm)"],"media":[{"alt":null,"id":64816629842304,"position":1,"preview_image":{"aspect_ratio":0.999,"height":845,"width":844,"src":"\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500-3.jpg?v=1744799315"},"aspect_ratio":0.999,"height":845,"media_type":"image","src":"\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500-3.jpg?v=1744799315","width":844},{"alt":null,"id":64816629744000,"position":2,"preview_image":{"aspect_ratio":1.0,"height":845,"width":845,"src":"\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500.jpg?v=1744799315"},"aspect_ratio":1.0,"height":845,"media_type":"image","src":"\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500.jpg?v=1744799315","width":845},{"alt":null,"id":64816629809536,"position":3,"preview_image":{"aspect_ratio":1.001,"height":841,"width":842,"src":"\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500-2.jpg?v=1744799315"},"aspect_ratio":1.001,"height":841,"media_type":"image","src":"\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500-2.jpg?v=1744799315","width":842},{"alt":null,"id":64816641573248,"position":4,"preview_image":{"aspect_ratio":0.998,"height":845,"width":843,"src":"\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500-4.jpg?v=1744799209"},"aspect_ratio":0.998,"height":845,"media_type":"image","src":"\/\/www.freeflush.co.uk\/cdn\/shop\/files\/OFCC500-4.jpg?v=1744799209","width":843}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cstrong\u003e**Flow rate and head must be provided via email upon purchase**\u003c\/strong\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eThe OFCC500 Oriflo model is designed to handle flow rates up to 70 L\/sec, which can be increased when introduced to systems with larger depth head drops.\u003c\/p\u003e\n\u003cp\u003eIt features a Ø 450mm rotational moulded chamber base, which accommodates 150mm or 225mm twinwall main channel connections accordingly.\u003c\/p\u003e\n\u003cp\u003eThis model features a 100% recycled thermoplastic block (Blok), providing protection to the orifice.  Subsequently, this Blok is installed into our rotational moulded chambers forcing all flow through the Blok before reaching the outlet, filtering out Total Suspended Solids including silt up to 30μm (0.03mm).\u003c\/p\u003e\n\u003cp\u003eAlso contains a basket attached the the Blok, with a capacity of 17.5kg, which is designed for up to 1200m² of surface water runoff.\u003c\/p\u003e\n\u003cp\u003eAlternatively, we offer a larger model with a Ø 600mm chamber, available\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.freeflush.co.uk\/products\/oriflo-flow-control-chamber-c-series?_pos=1\u0026amp;_sid=92e7cd02b\u0026amp;_ss=r\"\u003ehere\u003c\/a\u003e\u003ca href=\"https:\/\/turtleenviro.co.uk\/product\/oriflo-ofcc600\/\"\u003e.\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eBLOK Filter Technology Within The Oriflo Range\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003eThis model is within our protected Oriflo range. This range includes a filter to prevent total suspended solids (TSS) including silt migrating past the filter, protecting the orifice plate and stopping potential blockage. This range allows smaller orifice sizes due to the enhanced protection of the orifice plate.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eApplication\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eAbove ground access for inspection and maintenance of surface water pipe systems.\u003c\/li\u003e\n\u003cli\u003eSuitable for Adoptable and Non-Adoptable applications.\u003c\/li\u003e\n\u003cli\u003eMaximum installation depth of soffit pipe - Adoptable 3000mm and Non-Adoptable 3000mm.\u003c\/li\u003e\n\u003cli\u003eDesigned for medium to large housing or commercial developments.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eBuilt to the following standards\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eDesign \u0026amp; Construction Guidance (DCG) - Section C7.12\u003c\/li\u003e\n\u003cli\u003eCIRIA75310.2 - 20.5 Compliance\u003c\/li\u003e\n\u003cli\u003eBS 8582 - 9.6\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eFeatures\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eSingle piece, pre-assembled chambers.\u003c\/li\u003e\n\u003cli\u003eDurable rotational moulded LLDPE base - chemical and impact resistant.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003e480mm sump depth.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eCompatible with all UK Twinwall pipe systems.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eProfiled base which improves overall strength.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eThree standard depths available.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eAccess shafts are easily cut onsite to the required depth.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eChambers can be installed in granular backfill.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eSpecification\u003c\/strong\u003e\u003c\/p\u003e\n\u003cstyle type=\"text\/css\"\u003e\u003c!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}--\u003e\u003c\/style\u003e\n\u003ctable xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\" cellspacing=\"0\" cellpadding=\"0\" dir=\"ltr\" border=\"1\" data-sheets-root=\"1\" data-sheets-baot=\"1\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"114\"\u003e \u003ccol width=\"114\"\u003e \u003ccol width=\"114\"\u003e \u003ccol width=\"114\"\u003e \u003ccol width=\"127\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"text-align: center;\"\u003e\u003cstrong\u003eModel\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e\n\u003cstrong\u003eMain Pipework \u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003eConnections \u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003eØ (mm)\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e\u003cstrong\u003eOverall Depth A\u003cbr\u003e(mm)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e\u003cstrong\u003eInvert Depth B\u003cbr\u003e(mm)\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e\n\u003cstrong\u003eApprocimate Weight\u003c\/strong\u003e\u003cbr\u003e\u003cstrong\u003e(kg)\u003c\/strong\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"text-align: center;\"\u003eOFCC500\/1.5\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e150 , 225\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e1480\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e965\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e35\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"text-align: center;\"\u003eOFCC500\/2\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e150 , 225\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e1990\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e1475\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e40\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"text-align: center;\"\u003eOFCC500\/2.4\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e150 , 225\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e2400\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e1885\u003c\/td\u003e\n\u003ctd style=\"text-align: center;\"\u003e45\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cul\u003e\n\u003cli\u003eChambers over 1000mm soffit depth require our reduction\/restriction caps to meet DCG.\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eInlet Invert measurements accurate to main channel socket. This measurement will vary depending on pipework used.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003c!-- split --\u003e\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0829\/4323\/files\/OFCC500_DATA_SHEET.pdf?v=1744799026\"\u003eOFCC500 Data Sheet\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0829\/4323\/files\/OFCC500_PRODUCT_DRAWING.pdf?v=1744799027\"\u003eOFCC500 Drawing\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e"}
